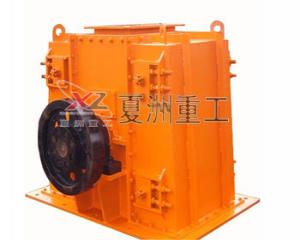

PCKW Reversible Crusher

PCKW Reversible Crusher is produced by a new reversible crusher, the crusher, the material shall not be greater than 150 MPa compressive strength, surface water is not more than 12%.

PCKW Reversible Crusher

Description:PCKW series crusher is a modern crusher which has a reversible roller and the non-blocking feature. It is available to deal with materials with facture strength less than 150MPa and humidity less than 12%. With no plates installed, the crusher can avoid being blocked by materials with high humidity.

Features:1.Reversible roller improves efficiency. 2.Heavy-duty alloy hammerhead has a longer service time and improves productivity by 100%. 3.Blocking can be avoided with no plates installed. 4.It is easy to open and maintain the crushing chamber with the hydraulic system. 5.Wide range of applications and cost effective.

Components:The crusher comprises the frame, the hammer, the roller, the fine plate, the adjusting device, the crushing chamber, the hydraulic coupling, etc.

Working Principle:The material will first meet with the hammerhead which is rotating at a high speed and then collide with the toothed plate to finish the primary crushing. Afterwards, the crushed material in uniform size comes into the crushing chamber for secondary crushing, obtains kinetic energy from the hammerhead again, and knocks on the saw-toothed liner in the impact chamber. After bouncing from the liner, the crushed material will be crushed by the hammerhead again. In the meantime, material knocks on material. Finished products can be obtained after several crushing and then be discharged.

PCKW Reversible Crusher technical data:

Model Rotor diameter
X length
(mm)
Speed
(r/min)
Inlet size
(mm)
Maximum feed size
(mm)
Out size
(mm)
Capacity
(t/h)
Power
(kw)
PCKW0809 800×900 970 300×800 100 3~8 20~60 45~75
PCKW1012 1000×1200 980 300×1200 100 3~8 40~100 90~132
PCKW1214 1200×1400 981 400×1450 100 3~8 60~160 90~132
PCKW1414 1400×1400 740 600×1450 100 3~8 80~180 185~220
PCKW1416 1400×1600 750 400×1650 100 3~8 120~300 185~220
PCKW1618 1600×1800 675 550×1800 100 3~8 240~320 220~280
